Air-Cooled
•
Large, open-ported manifold for reduced noise & friction
•
High performance Kevlar vanes with visual inspection ports in casing
•
High quality Viton oil seals last longer than traditional oil seals
•
Low rotating speed leads to longer pump life
•
Sealed bearings - no grease points
•
29 PSI positive pressure capacity
•
Direct feed, sealed oiling system
•
Industry leading 2-Yr warranty
PM60A
RPM: 1100, 1250, 1400
CFM: 198-252
Hose Size: 3"
Continuous Vacuum: 22" Hg
CFM: 198-252
Hose Size: 3"
Continuous Vacuum: 22" Hg
Parts Diagram:
Owner's Manual:
PM70A
RPM: 1100, 1250, 1400
CFM: 253-322
Hose Size: 3"
Continuous Vacuum: 22" Hg
CFM: 253-322
Hose Size: 3"
Continuous Vacuum: 22" Hg
Parts Diagram:
Owner's Manual:
PM80A
RPM: 1100, 1250, 1400
CFM: 328-417
Hose Size: 3"
Continuous Vacuum: 22" Hg
RPM: 1100, 1250, 1400
CFM: 328-417
Hose Size: 3"
Continuous Vacuum: 22" Hg
Parts Diagram:
Owner's Manual:
Fan-Cooled
•
Heavy duty fan-cooled design for tough industrial applications
- continuous pumping duty
- no expensive cooling system
- no risk to truck cooling system
- no water lines to truck cooling system
- continuous pumping duty
- no expensive cooling system
- no risk to truck cooling system
- no water lines to truck cooling system
•
Low rotating speeds for longer pump life
•
Integrated check valve, change-over valve and oiling system for ease-of-use and installation
•
Low rotating speed leads to longer pump life
•
Field-proven superior pump life
•
29 PSI positive pressure capability (PM80/PM100T)
•
Industrial duty Viton oil seals for longer pump life

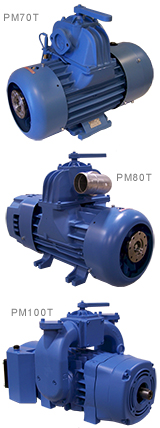

PM70T
RPM: 1100
CFM: 247
Hose Size: 3"
Continuous Vacuum: 24" Hg
RPM: 1100
CFM: 247
Hose Size: 3"
Continuous Vacuum: 24" Hg
Parts Diagram:
Owner's Manual:
PM80T
RPM: 1100
CFM: 350
Hose Size: 3"
Continuous Vacuum: 24" Hg
RPM: 1100
CFM: 350
Hose Size: 3"
Continuous Vacuum: 24" Hg
Parts Diagram:
Owner's Manual:
PM100T
RPM: 1100, 1250, 1400
CFM: 460
Hose Size: 4"
Continuous Vacuum: 24" Hg
RPM: 1100, 1250, 1400
CFM: 460
Hose Size: 4"
Continuous Vacuum: 24" Hg
Parts Diagram:
Owner's Manual:
Water-Cooled
•
High performance Kevlar vanes with visual inspection ports in casing
•
High quality Viton oil seals last longer than traditional oil seals
•
Low rotating speed leads to longer pump life
•
Sealed or oiled bearings - no grease points
•
Direct feed, sealed oiling system
•
29 PSI positive pressure capacity
•
Full liquid cooling system with forced circulation through external water pump
•
Recommended for heavy continuous industrial applications
PM60W
RPM: 1100, 1250, 1400
CFM: 198-252
Hose Size: 3"
Continuous Vacuum: 24" Hg
RPM: 1100, 1250, 1400
CFM: 198-252
Hose Size: 3"
Continuous Vacuum: 24" Hg
Parts Diagram:
Owner's Manual:
PM80W
RPM: 1100, 1250, 1400
CFM: 328-417
Hose Size: 3"
Continuous Vacuum: 24" Hg
RPM: 1100, 1250, 1400
CFM: 328-417
Hose Size: 3"
Continuous Vacuum: 24" Hg
Parts Diagram:
Owner's Manual:
PM110W
RPM: 1100, 1250, 1400
CFM: 496-630
Hose Size: 3" or 4"
Continuous Vacuum: 24" Hg
RPM: 1100, 1250, 1400
CFM: 496-630
Hose Size: 3" or 4"
Continuous Vacuum: 24" Hg
Parts Diagram:
Owner's Manual:

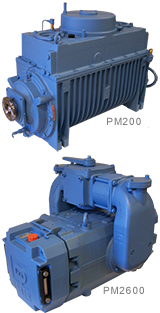

PM200
RPM: 1250
CFM: 677
Hose Size: 4"
Continuous Vacuum: 24" Hg
RPM: 1250
CFM: 677
Hose Size: 4"
Continuous Vacuum: 24" Hg
Parts Diagram:
Owner's Manual:
PM2600
RPM: 1500
CFM: 824
Hose Size: 4"
Continuous Vacuum: 24" Hg
RPM: 1500
CFM: 824
Hose Size: 4"
Continuous Vacuum: 24" Hg
Parts Diagram:
Owner's Manual:
