TANKS

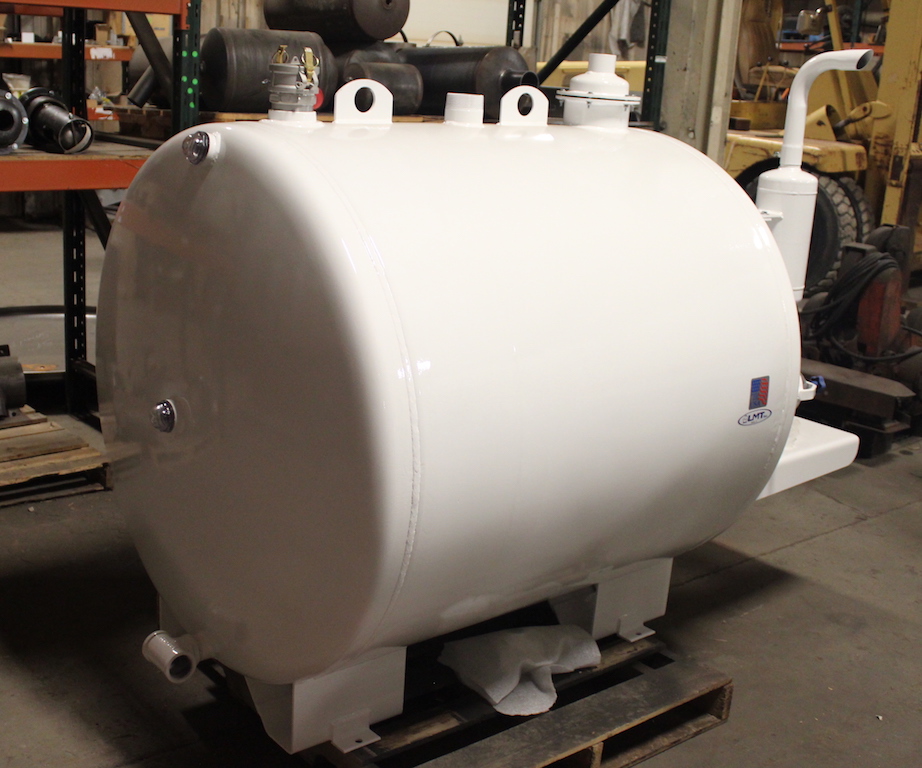

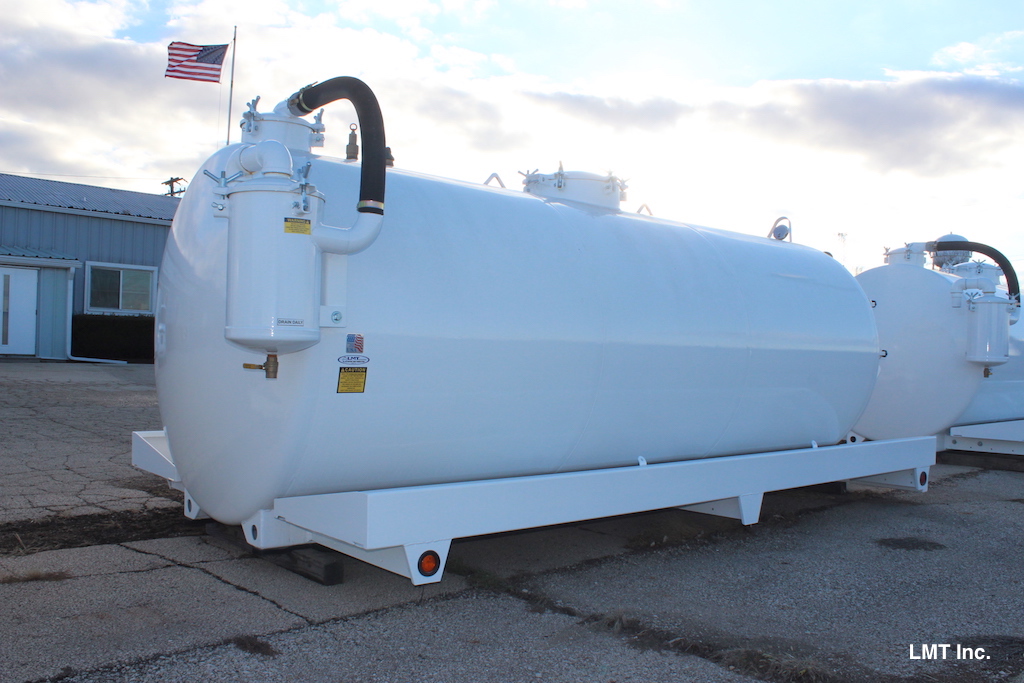

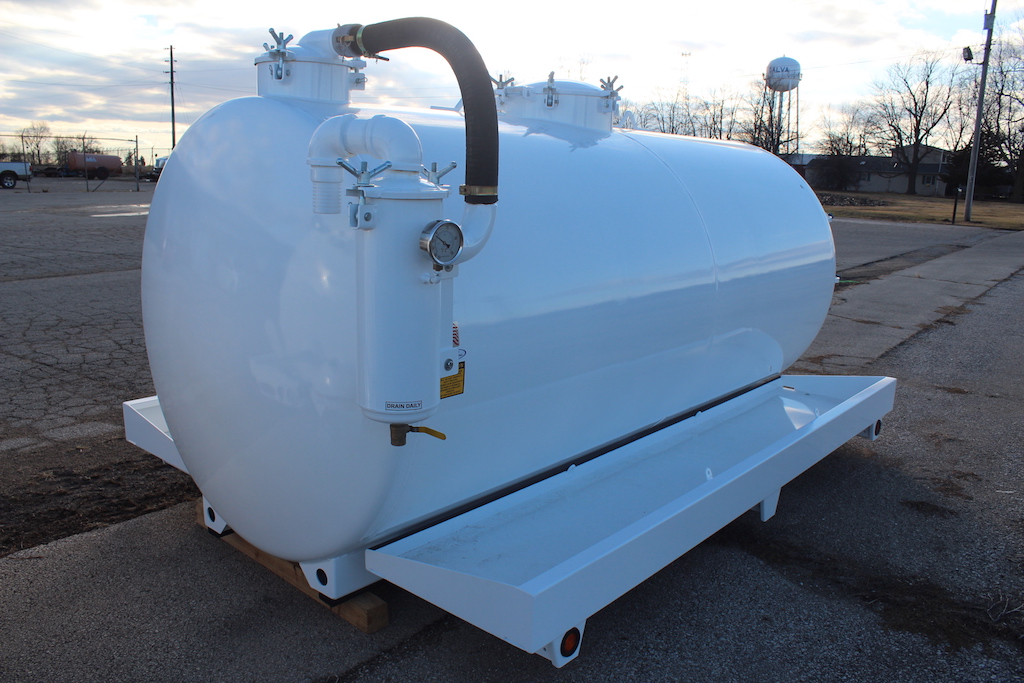

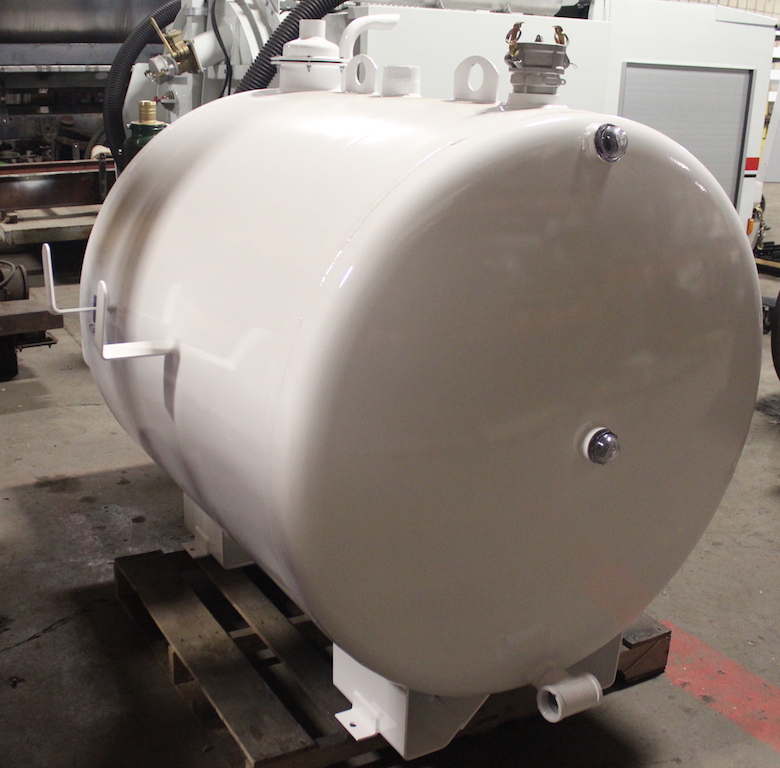

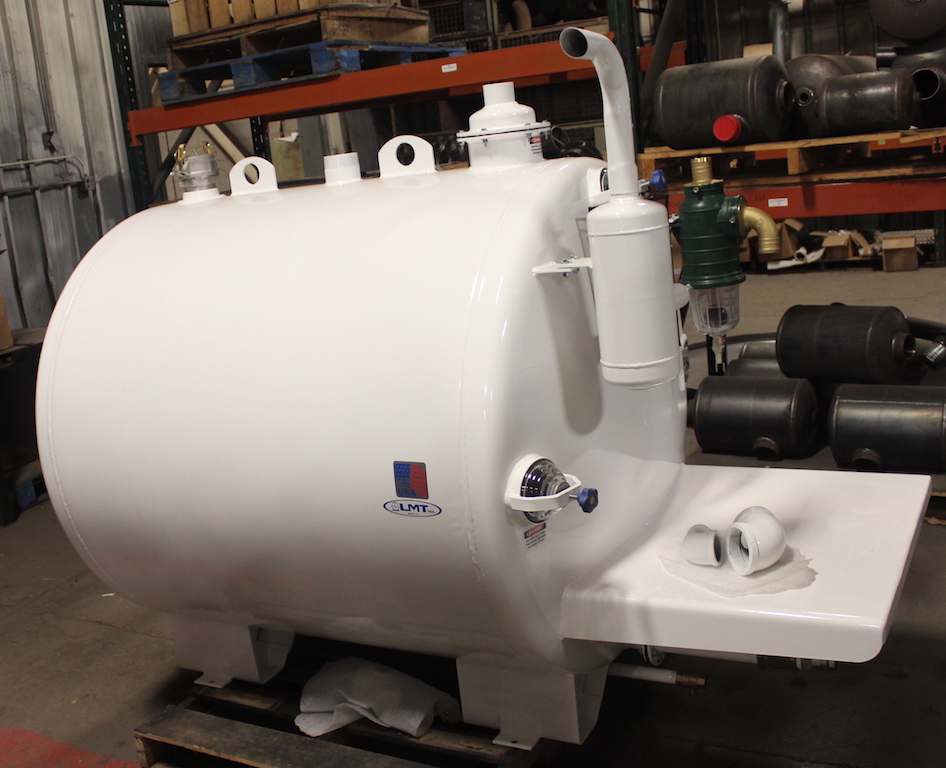

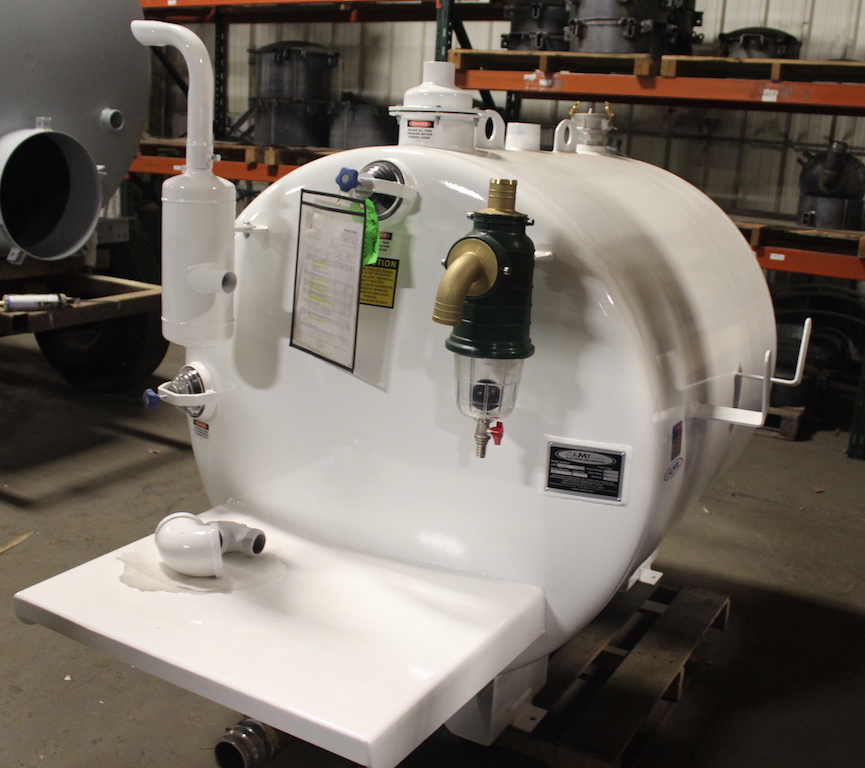

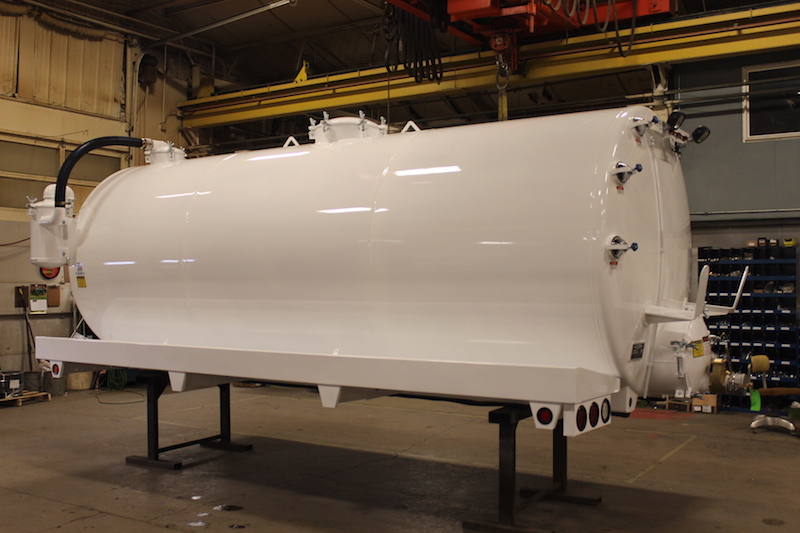

300/100 Slide-In Tank w/optional Pump Package
Tank Specifications
• 48" D x 4’ L
• 2 Compartment - 100 gal. fresh, 300 gal. waste
• 1/4” Carbon Steel Construction
• Primary Shutoff
• Secondary Shutoff
• Steel Sight Eyes, fresh and waste compartments
• Hose Hangers
• Pump Package Mounting Platform
• Bright White Paint
• 2 Compartment - 100 gal. fresh, 300 gal. waste
• 1/4” Carbon Steel Construction
• Primary Shutoff
• Secondary Shutoff
• Steel Sight Eyes, fresh and waste compartments
• Hose Hangers
• Pump Package Mounting Platform
• Bright White Paint
$10,000

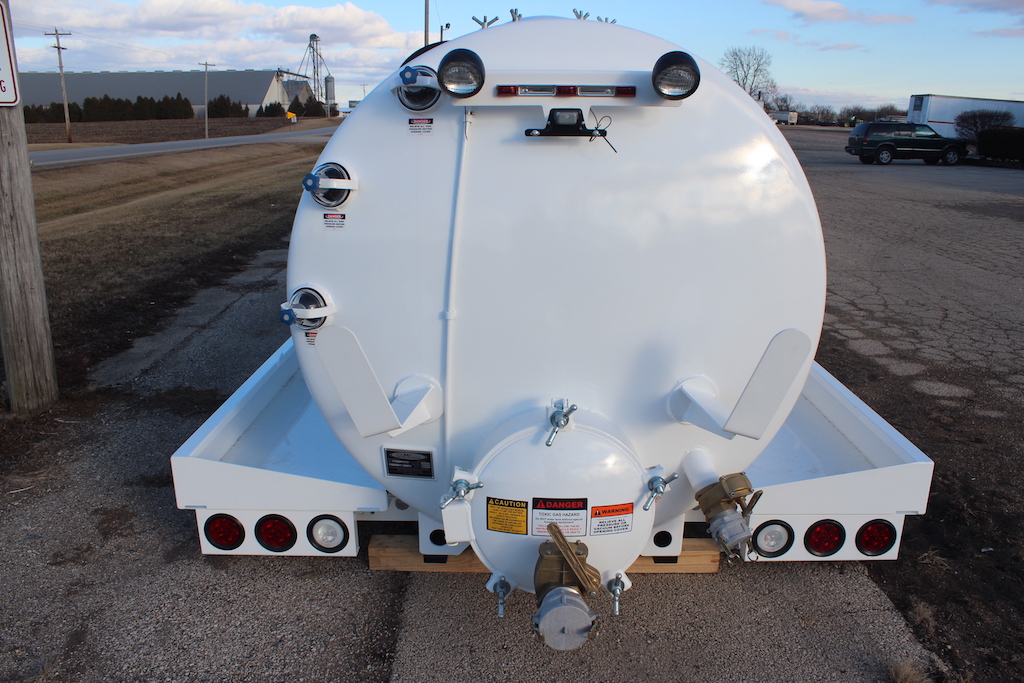

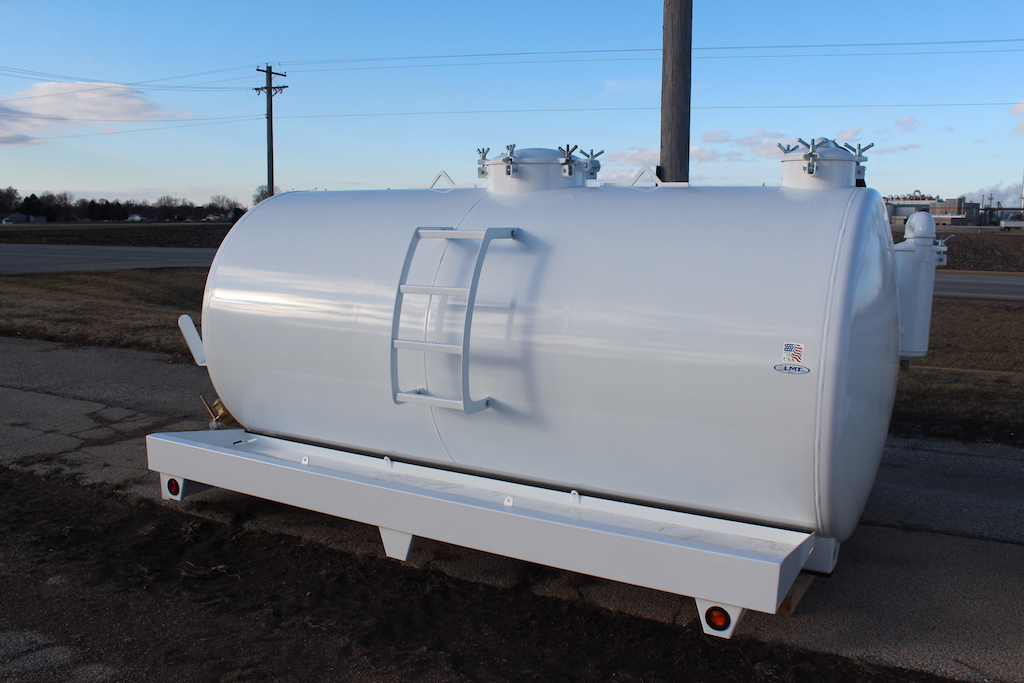

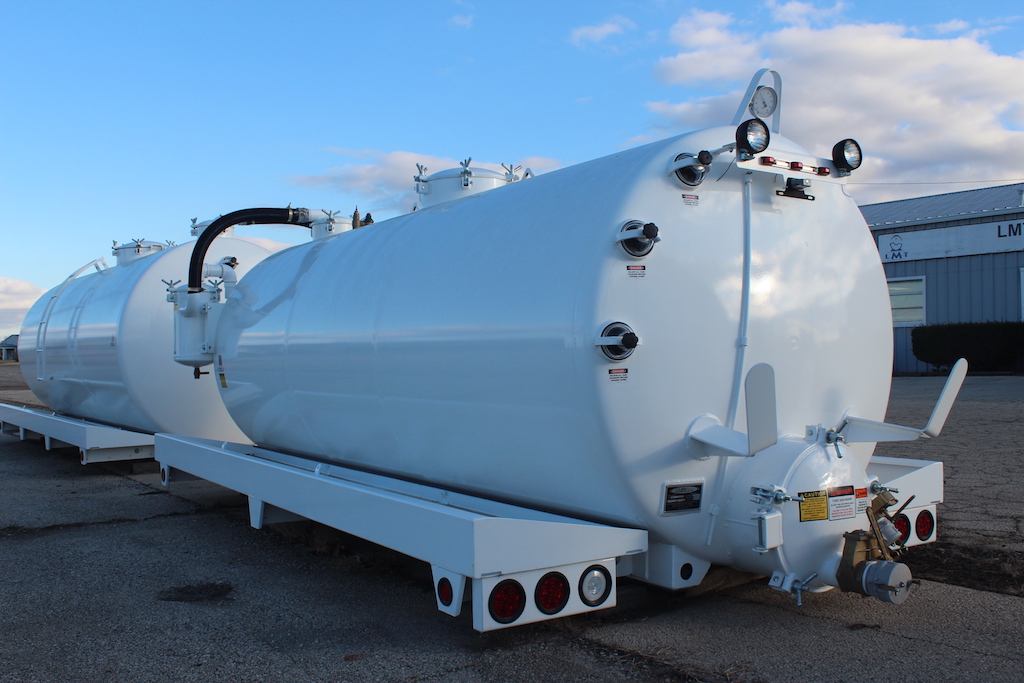

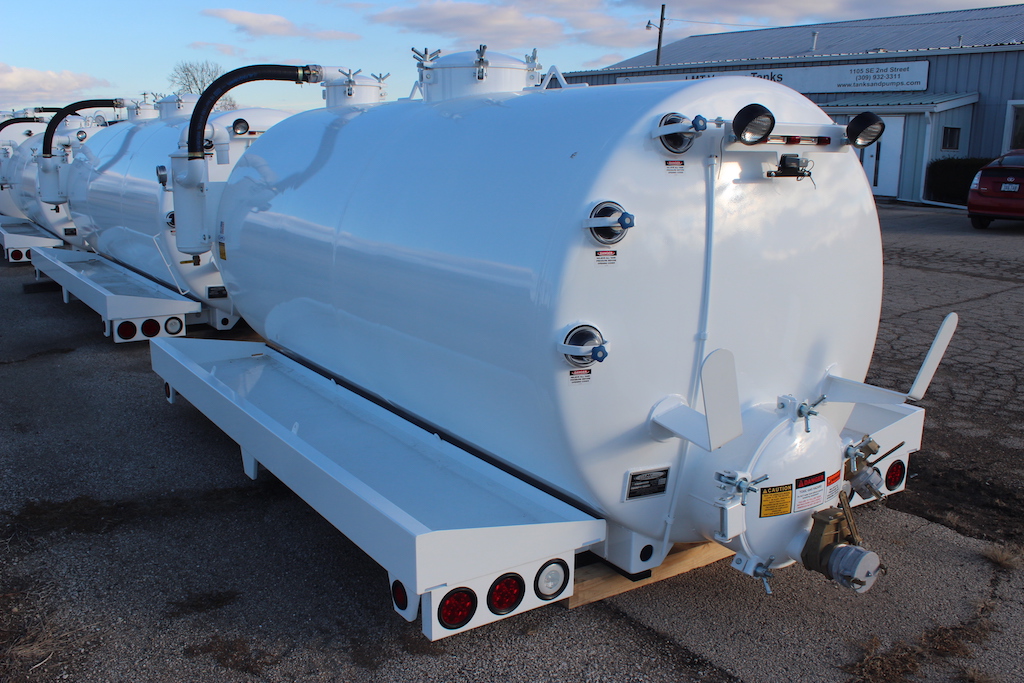

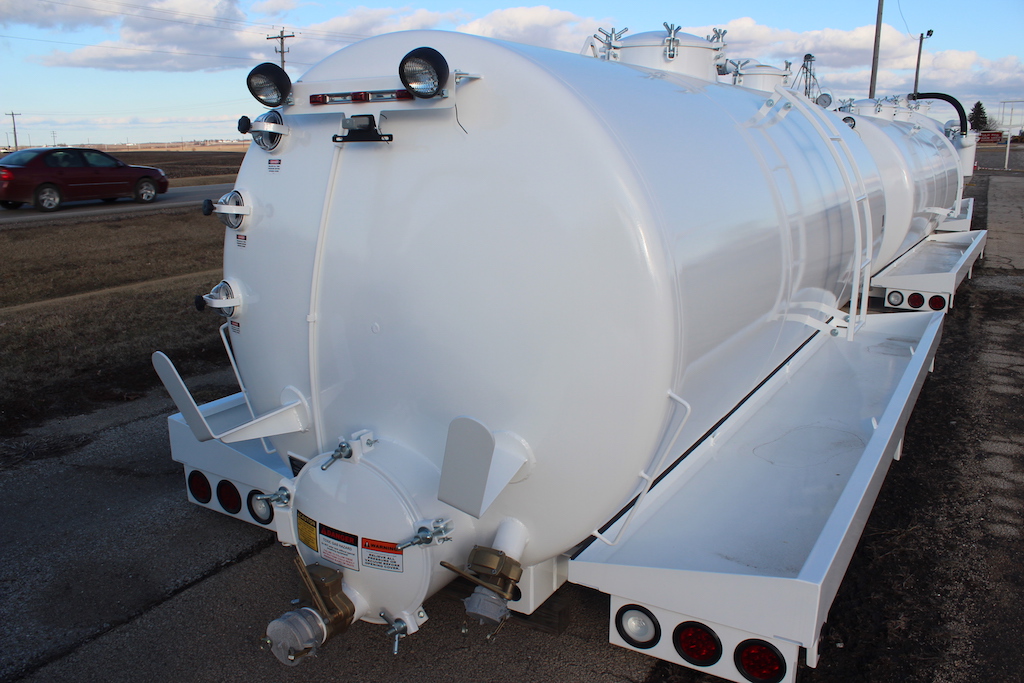

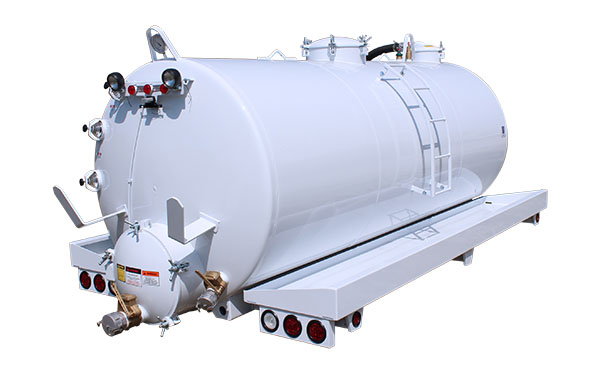

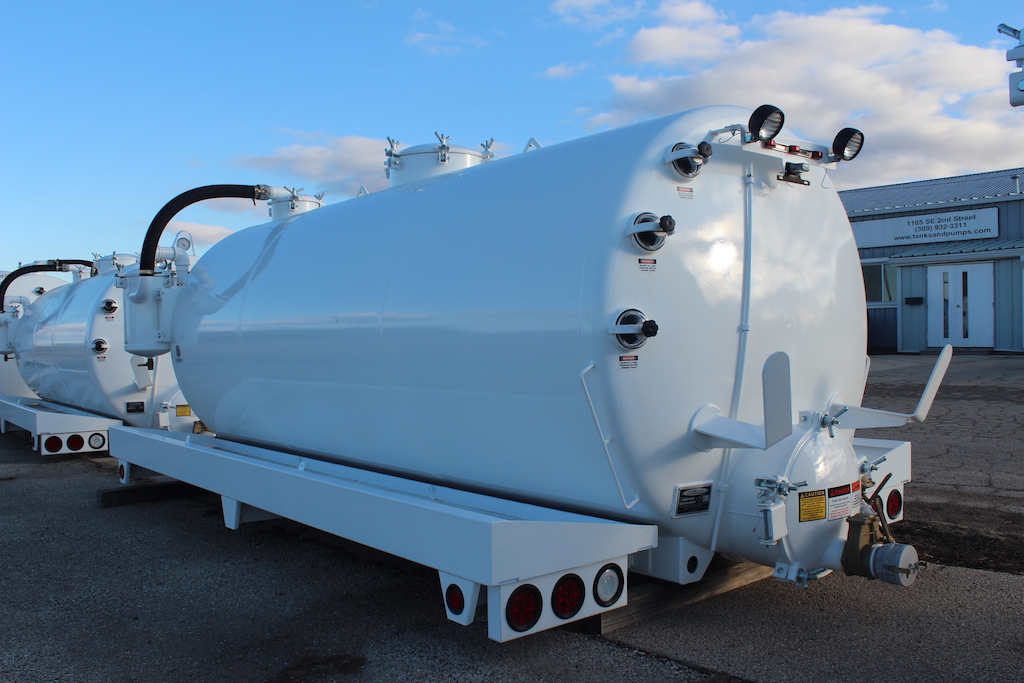

1800 ST Package
Tank Specifications
• 64 D x 11’ L
• 1/4” Carbon Steel Construction
• Primary Shutoff - 12" Low Profile
• Secondary Shutoff - 5 Gallon

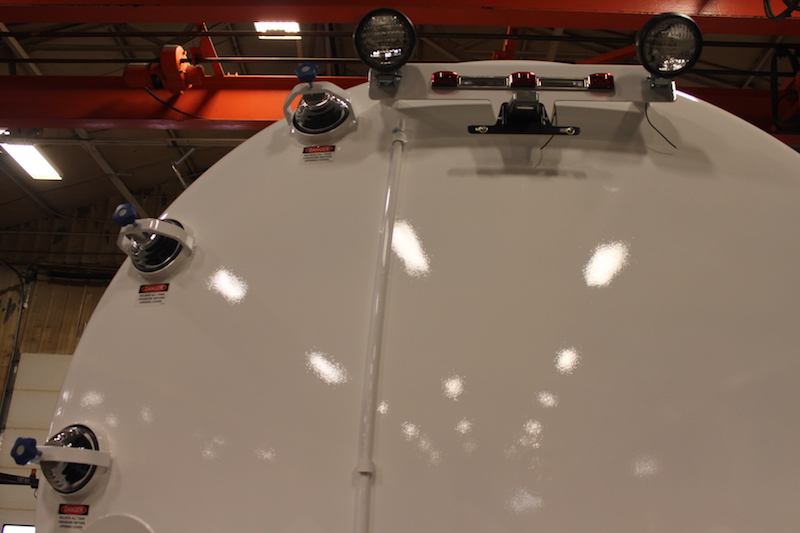

• Top (20”) & Rear (20") Manways

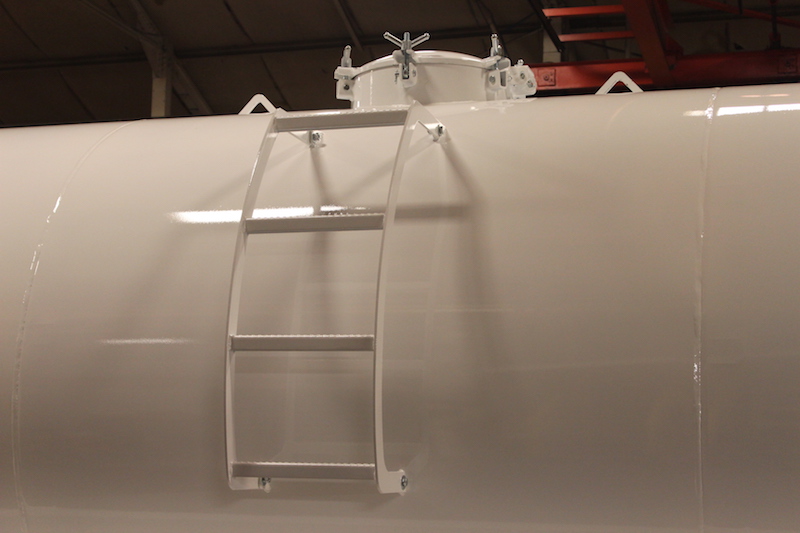

• Access Ladder (Curb-Side)

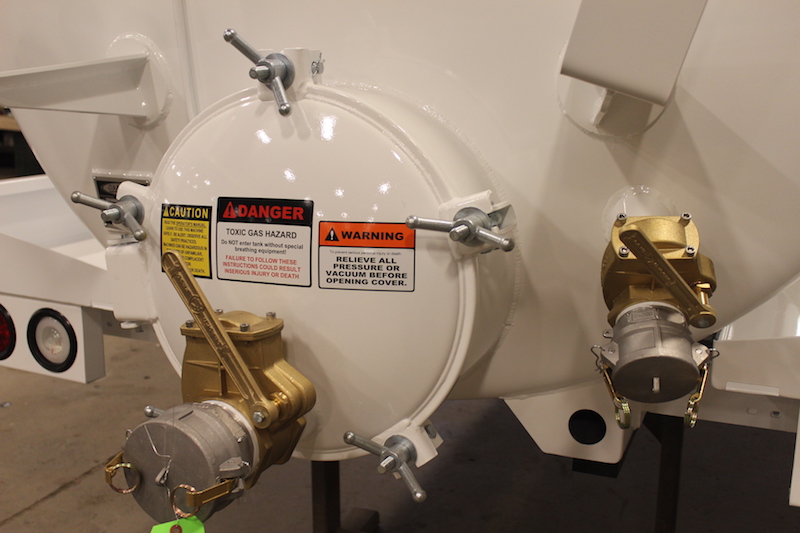

• Inlet (3") & Discharge (4") Ports w/ Lever Valves

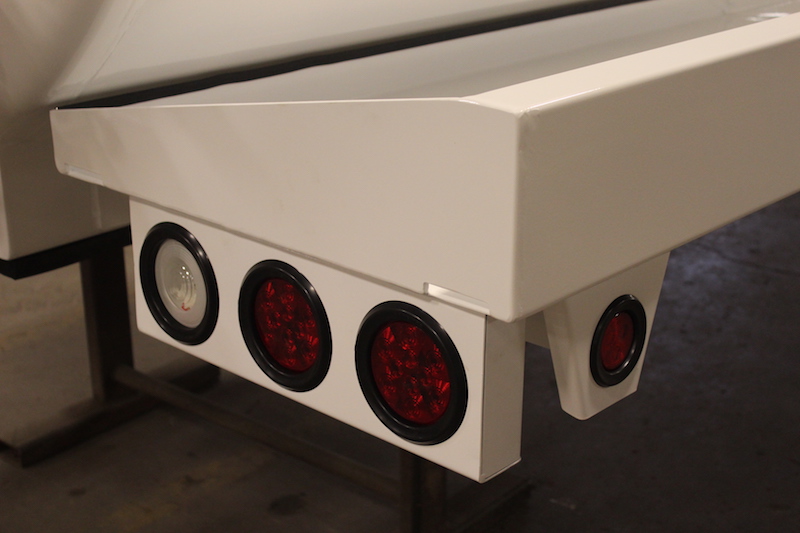

• Work & Tail Lights Kits
• (3) 5" Steel Sight Eyes
• Full-Length Rails & Hose Trays
• Hose Hangers - 12"
• Vacuum Pressure Gauge
• Vacuum & Pressure Relief Valves
• Mounting Kit
• Bright White Paint
• 1/4” Carbon Steel Construction
• Primary Shutoff - 12" Low Profile
• Secondary Shutoff - 5 Gallon
• Top (20”) & Rear (20") Manways
• Access Ladder (Curb-Side)
• Inlet (3") & Discharge (4") Ports w/ Lever Valves
• Work & Tail Lights Kits
• (3) 5" Steel Sight Eyes
• Full-Length Rails & Hose Trays
• Hose Hangers - 12"
• Vacuum Pressure Gauge
• Vacuum & Pressure Relief Valves
• Mounting Kit
• Bright White Paint

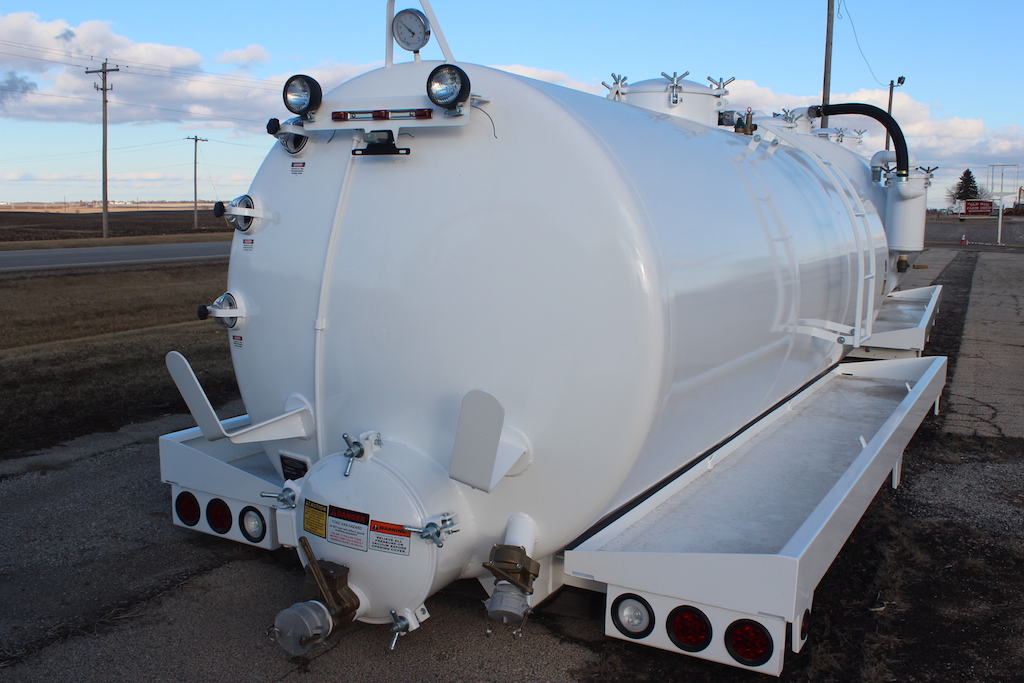

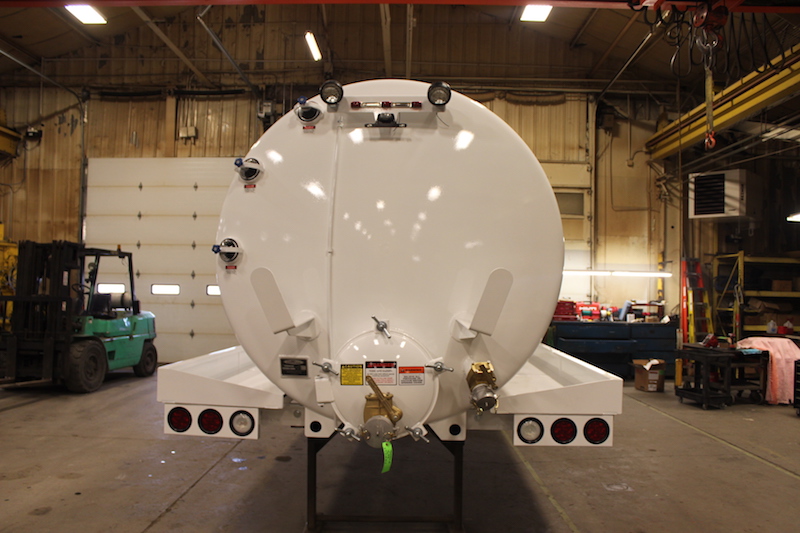

2300 ST Package
Tank Specifications
• 66" D x 13' L
• 1/4" Carbon Steel Construction
• 12” Primary Shutoff
• 10 Gal. Secondary Shutoff
• Top (20") & Rear (20”) Manways
• Access Ladder (Curb-Side)
• Inlet (3") & Discharge (4") Ports w/ Lever Valves
• Work & Tail Lights Kits
• (3) 5" Steel Sight Eyes
• Full-Length Rails & Hose Trays
• Hose Hangers - 12"
• Vacuum Pressure Gauge
• Relief Valves
• Mounting Kit
• Bright White Paint
• 1/4" Carbon Steel Construction
• 12” Primary Shutoff
• 10 Gal. Secondary Shutoff
• Top (20") & Rear (20”) Manways
• Access Ladder (Curb-Side)
• Inlet (3") & Discharge (4") Ports w/ Lever Valves
• Work & Tail Lights Kits
• (3) 5" Steel Sight Eyes
• Full-Length Rails & Hose Trays
• Hose Hangers - 12"
• Vacuum Pressure Gauge
• Relief Valves
• Mounting Kit
• Bright White Paint

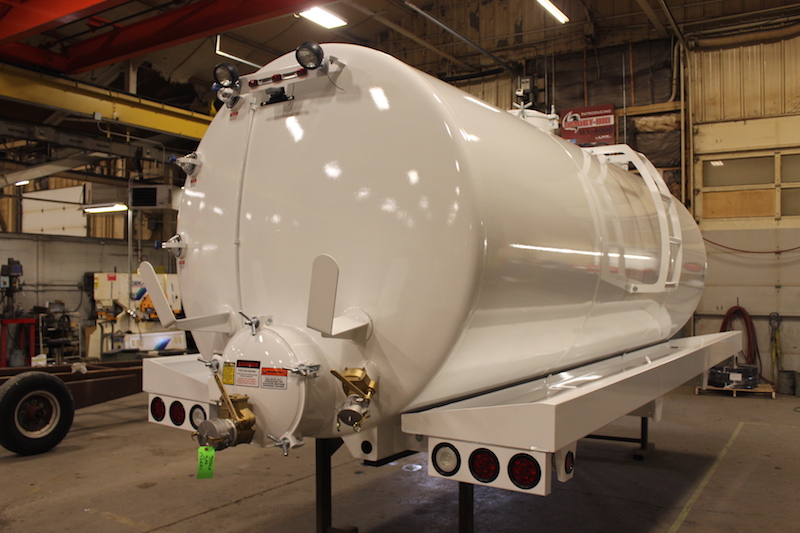

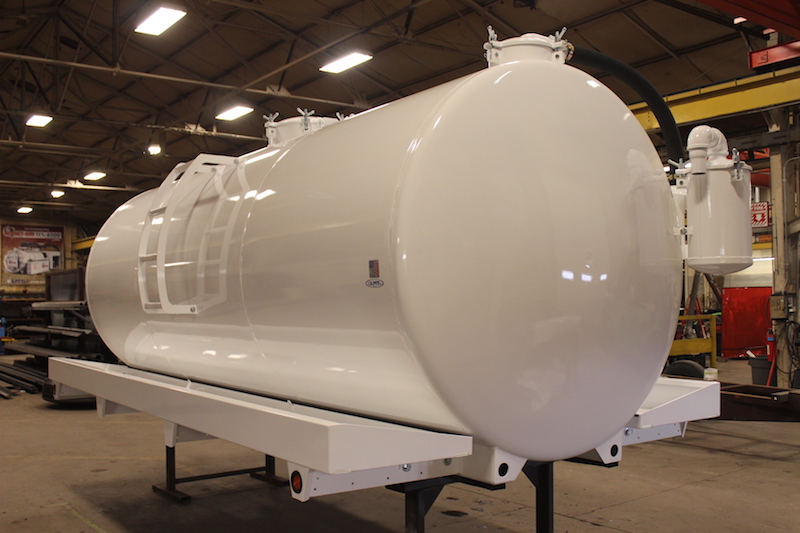

2500 ST Package
Tank Specifications
• 66" D x 14' L
• 1/4" Carbon Steel Construction
• 12” Primary Shutoff
• 10 Gal. Secondary Shutoff
• Top (20") & Rear (20”) Manways
• Access Ladder (Curb-Side)
• Inlet (3") & Discharge (4") Ports w/ Lever Valves
• Work & Tail Lights Kits
• (3) 5" Steel Sight Eyes
• Full-Length Rails & Hose Trays
• Hose Hangers - 12"
• Vacuum Pressure Gauge
• Relief Valves
• Mounting Kit
• Bright White Paint
• 1/4" Carbon Steel Construction
• 12” Primary Shutoff
• 10 Gal. Secondary Shutoff
• Top (20") & Rear (20”) Manways
• Access Ladder (Curb-Side)
• Inlet (3") & Discharge (4") Ports w/ Lever Valves
• Work & Tail Lights Kits
• (3) 5" Steel Sight Eyes
• Full-Length Rails & Hose Trays
• Hose Hangers - 12"
• Vacuum Pressure Gauge
• Relief Valves
• Mounting Kit
• Bright White Paint

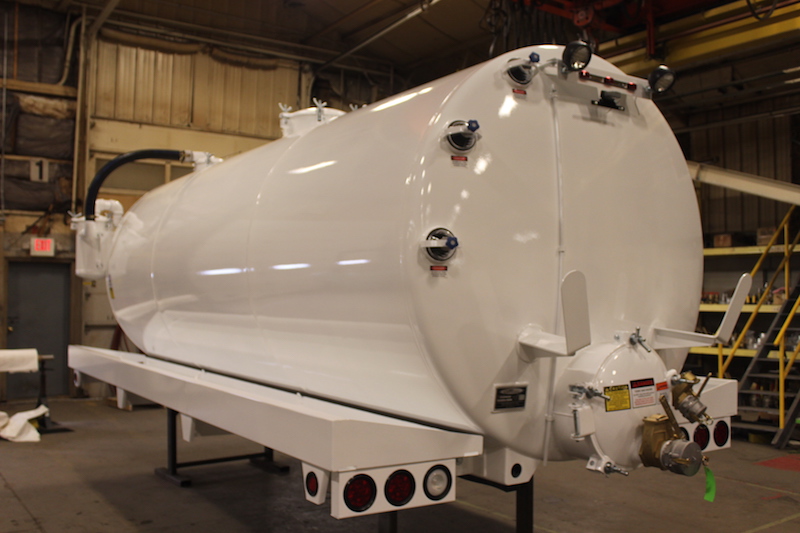

3500 ST Package
Tank Specifications
• 74” D x 16’ L
• 1/4” Carbon Steel Construction
• Primary & Secondary Shutoffs
• Top (20”) & Rear (20") Manways
• Access Ladder (Curb-Side)
• Inlet (3") & Discharge (4") Ports w/ Lever Valves
• Work & Tail Lights Kits
• (3) 5" Steel Sight Eyes
• Full-Length Rails & Hose Trays
• Hose Hangers - 12"
• Vacuum Pressure Gauge
• Relief Valves
• Mounting Kit
• Bright White Paint
• 1/4” Carbon Steel Construction
• Primary & Secondary Shutoffs
• Top (20”) & Rear (20") Manways
• Access Ladder (Curb-Side)
• Inlet (3") & Discharge (4") Ports w/ Lever Valves
• Work & Tail Lights Kits
• (3) 5" Steel Sight Eyes
• Full-Length Rails & Hose Trays
• Hose Hangers - 12"
• Vacuum Pressure Gauge
• Relief Valves
• Mounting Kit
• Bright White Paint
SMART-DIG HYDRO EXCAVATORS

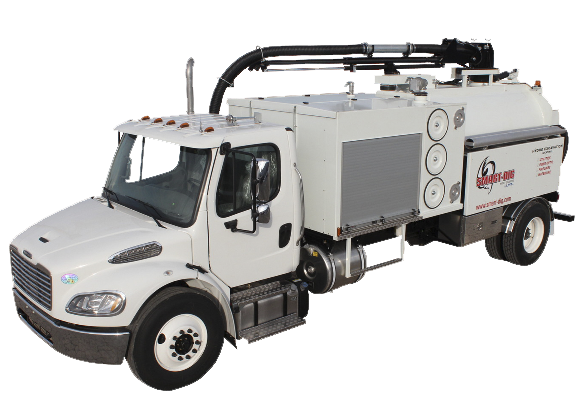

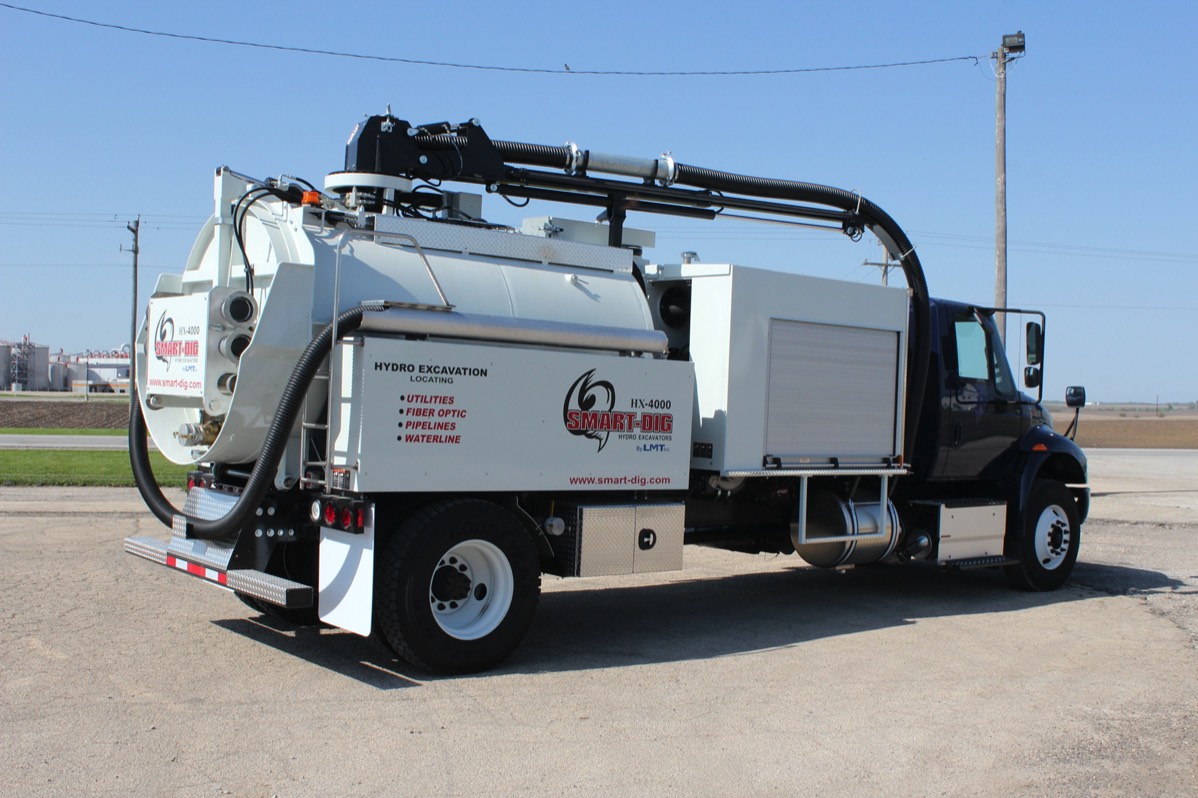

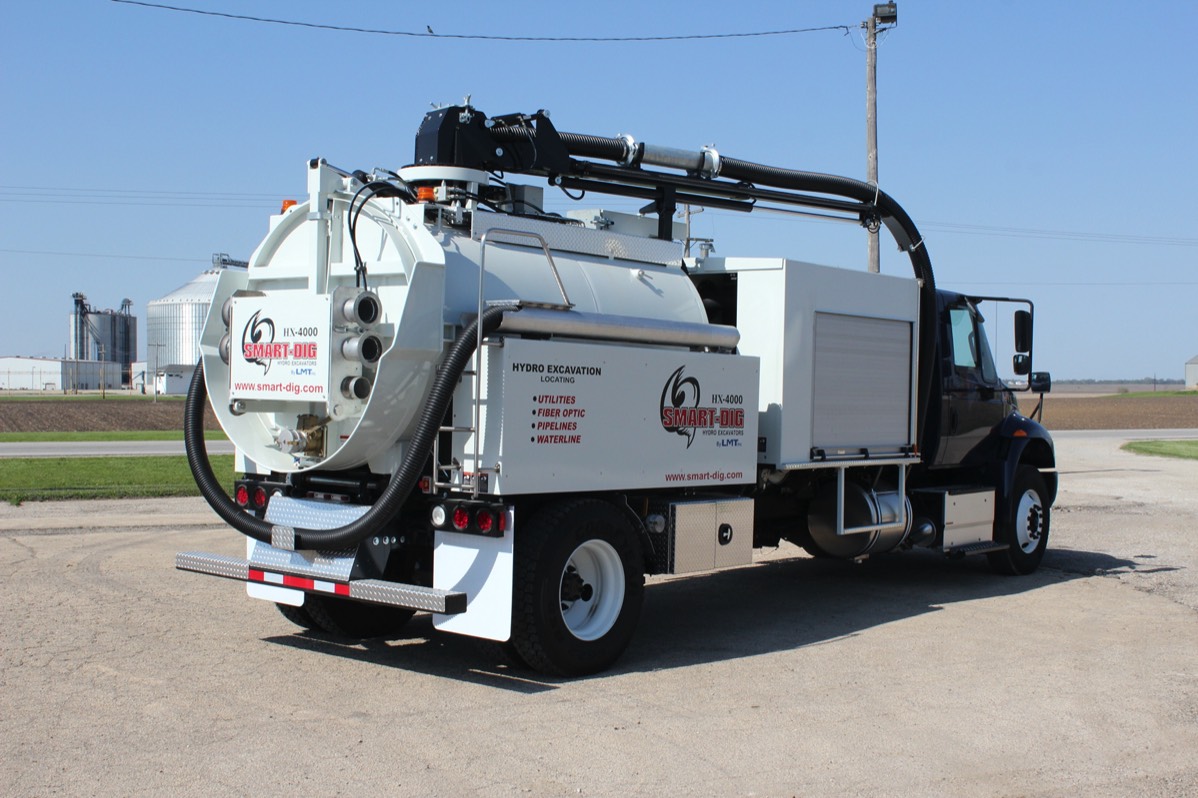

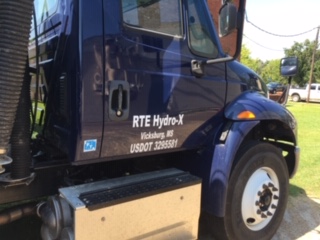

Smart-Dig HX-4000 Hydro Excavator - Freightliner M2 106 * DEMO SPECIAL*
HX-4000 Specifications
| Truck - Freightliner M2 106 Day Cab | CUM ISC-300 300 HP / 2000 RPM: 2200 GOV - Allison 3000 RDS Automatic Transmission. |
| Engine (Auxiliary) | KUBOTA V3600T, 83 HP @2600 RPM. |

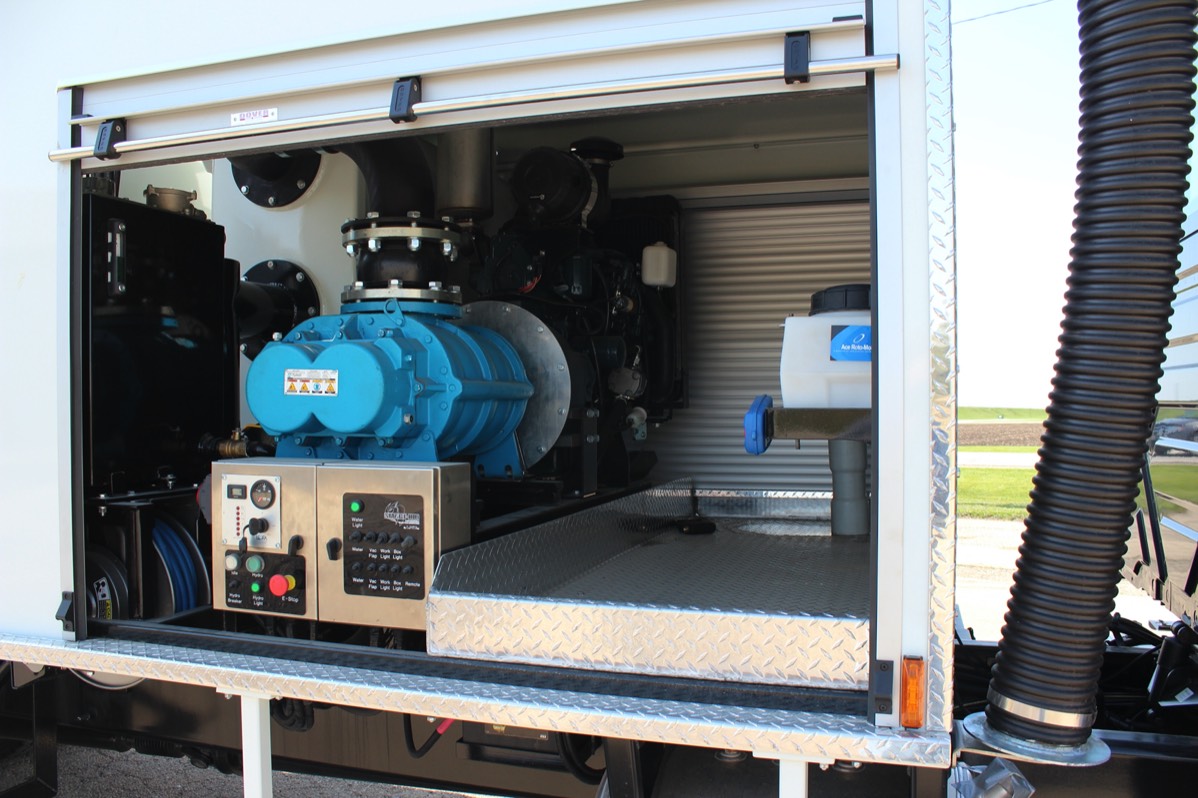

| Blower | TUTHILL, 6015 blower, 14 in Hg, 1000 CFM @ 1750 RPM, 1300 CFM @ 2300 RPM |
| Engine / Blower Frame Mount | Full rigid sub-frame, 4 point mounted to the chassis using directional rubber mountings give low vibration and noise. |
| Blower Exhaust / Silencer | The silencer has been designed to absorb / reduce expelled noise to a minimum. |
| Water Tanks | 4 side mounted rotary molded tanks with combined capacity of 400 gallons of water. Fill method via 3" Camlock (standpipe) or hose. Tanks are fully vented with top access points for inspection. |
| Debris Tank | 1200 gallon capacity tipping to 48 degrees - full door shielded for liquid containment when opening the door. Vacuum tested to 20 inHg (tested to over 1.5 times set operating vacuum). |
| Water Blast Pump - Engine Driven | Engine Driven - UDOR GD7.0 /30 7 gallons/Min 2 3000 psi. The pump is driven via an electro-magnetic clutch allowing the pump to be disengaged. |

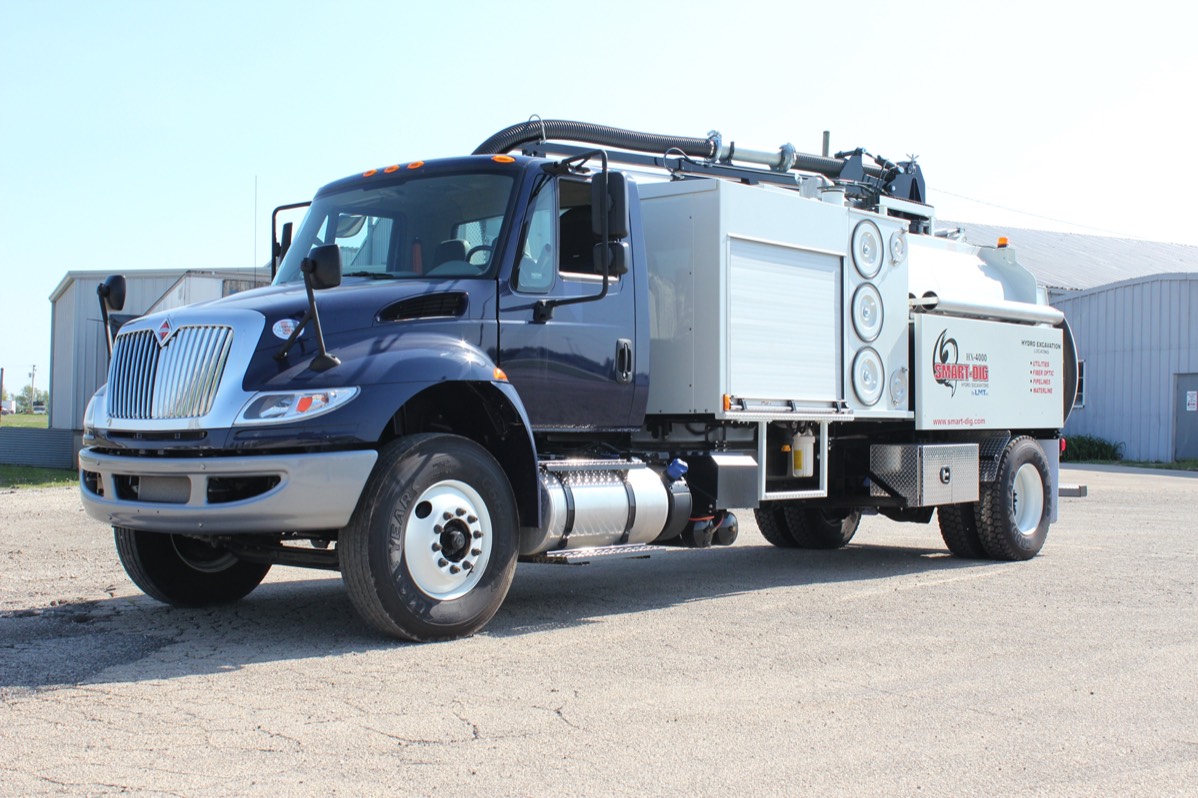

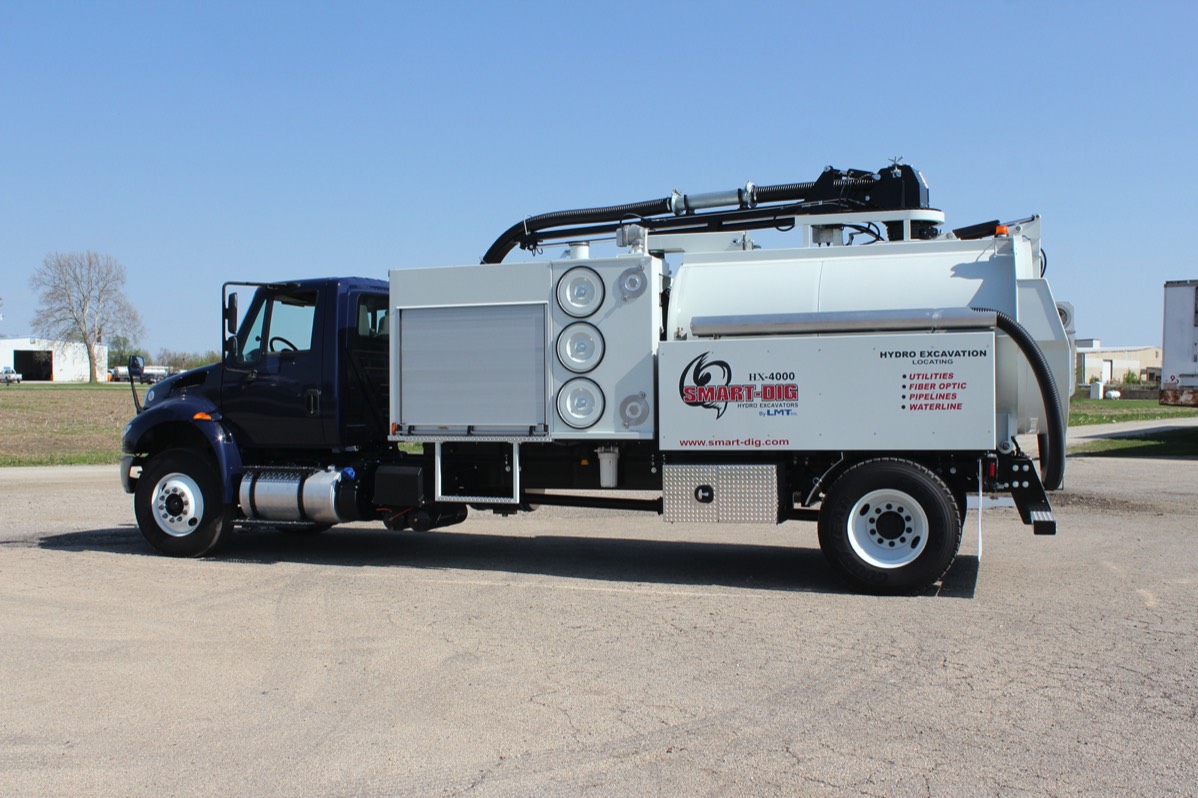

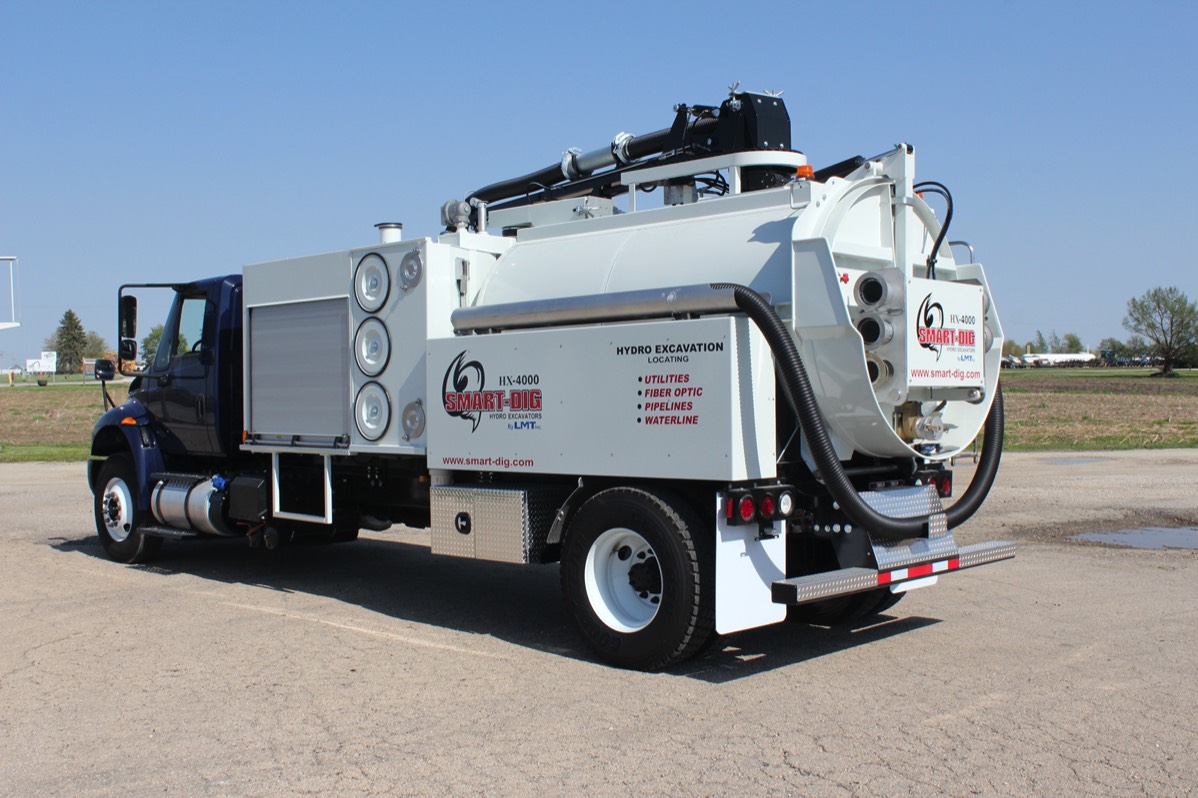

*NEW* SMART-DIG HX-4000 - 2016 INTERNATIONAL 4300 SBA 4 X 2
HX-4000 Specifications
Truck - 2016 International 4300 SBA 4 x 2 CUMMINS ISB-250 250 HP / Allison XMSN 3000 Automatic Transmission. 5th Generation, 6-Speed, Double Overdrive, Push-Button Shift Control
| Engine (Auxiliary) | KUBOTA V3600T, 83 HP @2600 RPM. |
| Blower | TUTHILL, 6015 blower, 14 in Hg, 1000 CFM @ 1750 RPM, 1300 CFM @ 2300 RPM |
| Engine / Blower Frame Mount | Full rigid sub-frame, 4 point mounted to the chassis using directional rubber mountings give low vibration and noise. |
| Blower Exhaust / Silencer | The silencer has been designed to absorb / reduce expelled noise to a minimum. |
| Water Tanks | 4 side mounted rotary molded tanks with combined capacity of 400 gallons of water. Fill method via 3" Camlock (standpipe) or hose. Tanks are fully vented with top access points for inspection. |
| Debris Tank | 1200 gallon capacity tipping to 48 degrees - full door shielded for liquid containment when opening the door. Vacuum tested to 20 inHg (tested to over 1.5 times set operating vacuum). |
| Water Blast Pump - Engine Driven | Engine Driven - UDOR GD7.0 /30 7 gallons/Min 2 3000 psi. The pump is driven via an electro-magnetic clutch allowing the pump to be disengaged. |

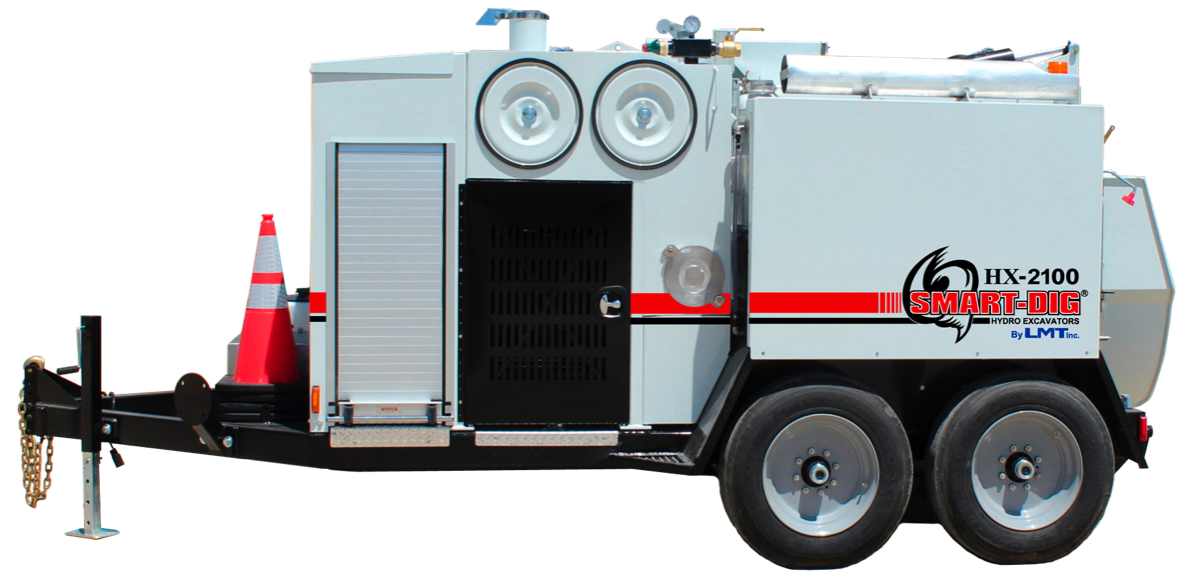

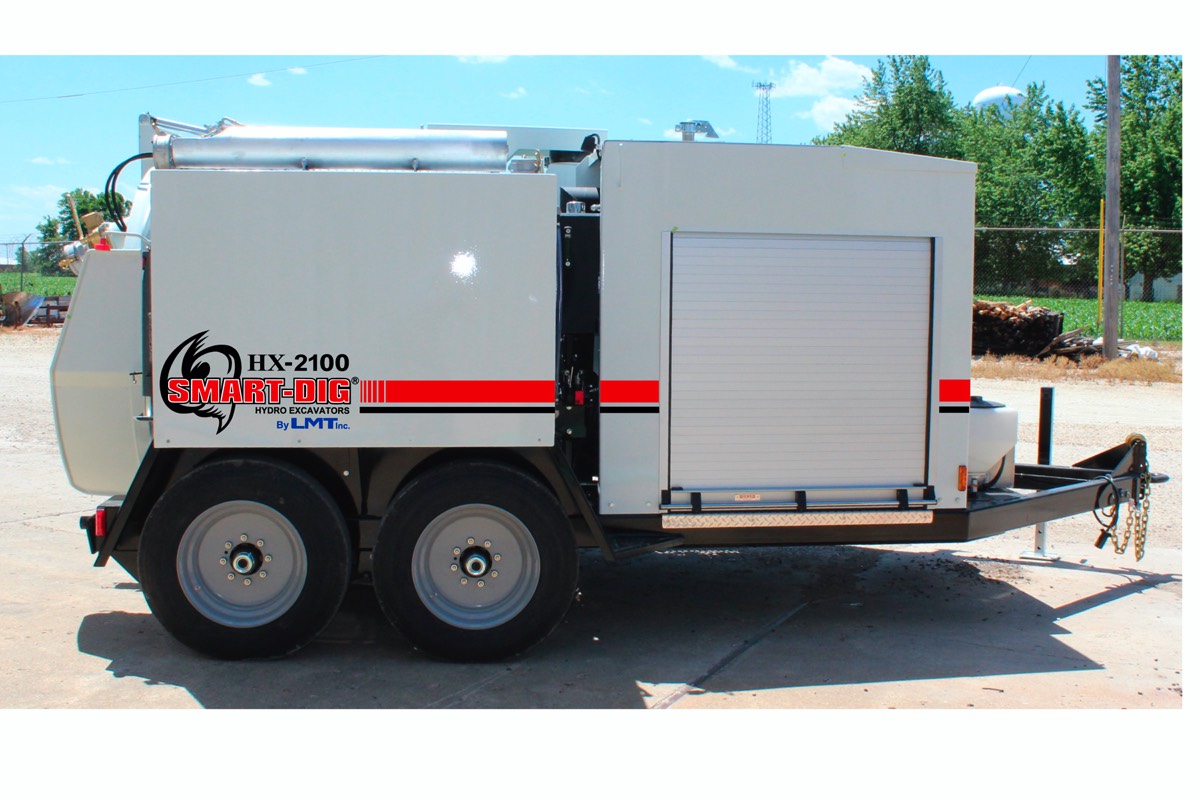

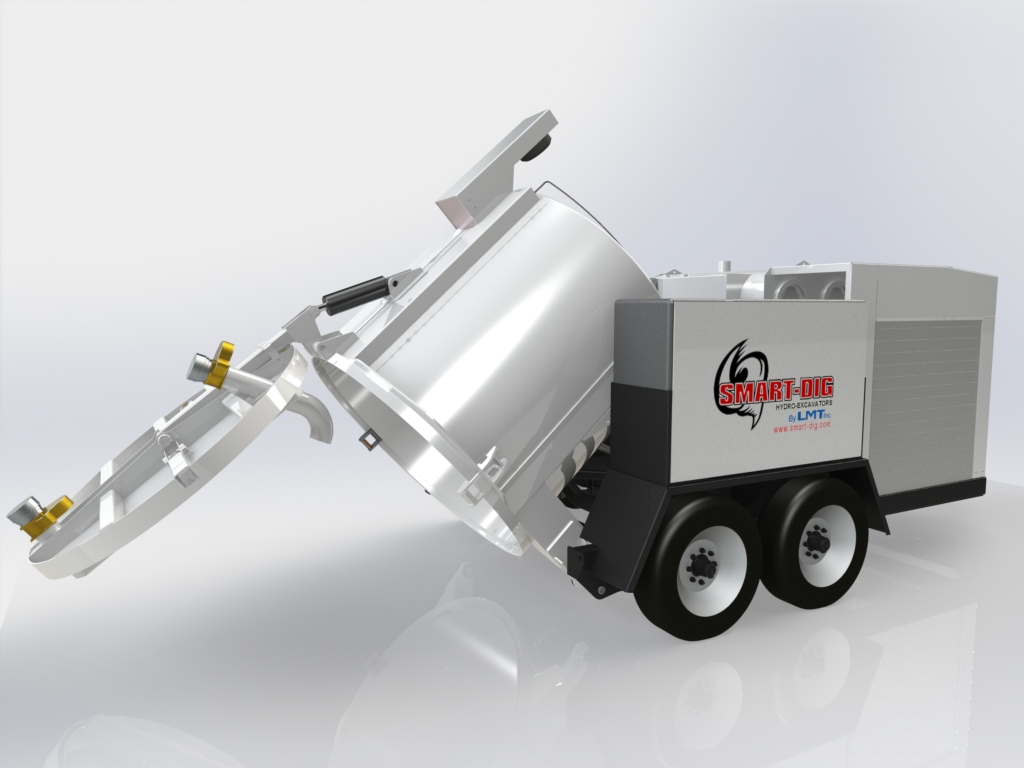

*NEW* SMART-DIG HX-2100 HYDRO EXCAVATION TRAILER
HX-2100 Specifications
| Engine (Auxiliary) | KUBOTA V2403, 59HP @2700 RPM. |
| Blower | TUTHILL, 6015 blower, 12 in Hg, 1300 CFM @ 1750 RPM |
| Engine / Blower Frame Mount | Full rigid sub-frame, 4 point mounted to the chassis using directional rubber mountings give low vibration and noise. |
| Blower Exhaust / Silencer | The silencer has been designed to absorb / reduce expelled noise to a minimum. |
| Water Tanks | 2 side mountedtanks with combined capacity of 300 gallons of water. |
| Debris Tank | 680 gallon capacity tipping to 48 degrees - full door shielded for liquid containment when opening the door. Vacuum tested to 20 inHg (tested to over 1.5 times set operating vacuum). |
| Water Blast Pump - Engine Driven | Engine Driven - UDOR 8 Gallons/Min 2200 psi. The pump is driven via an electro-magnetic clutch allowing the pump to be disengaged. |
REFURBISHED PUMPS

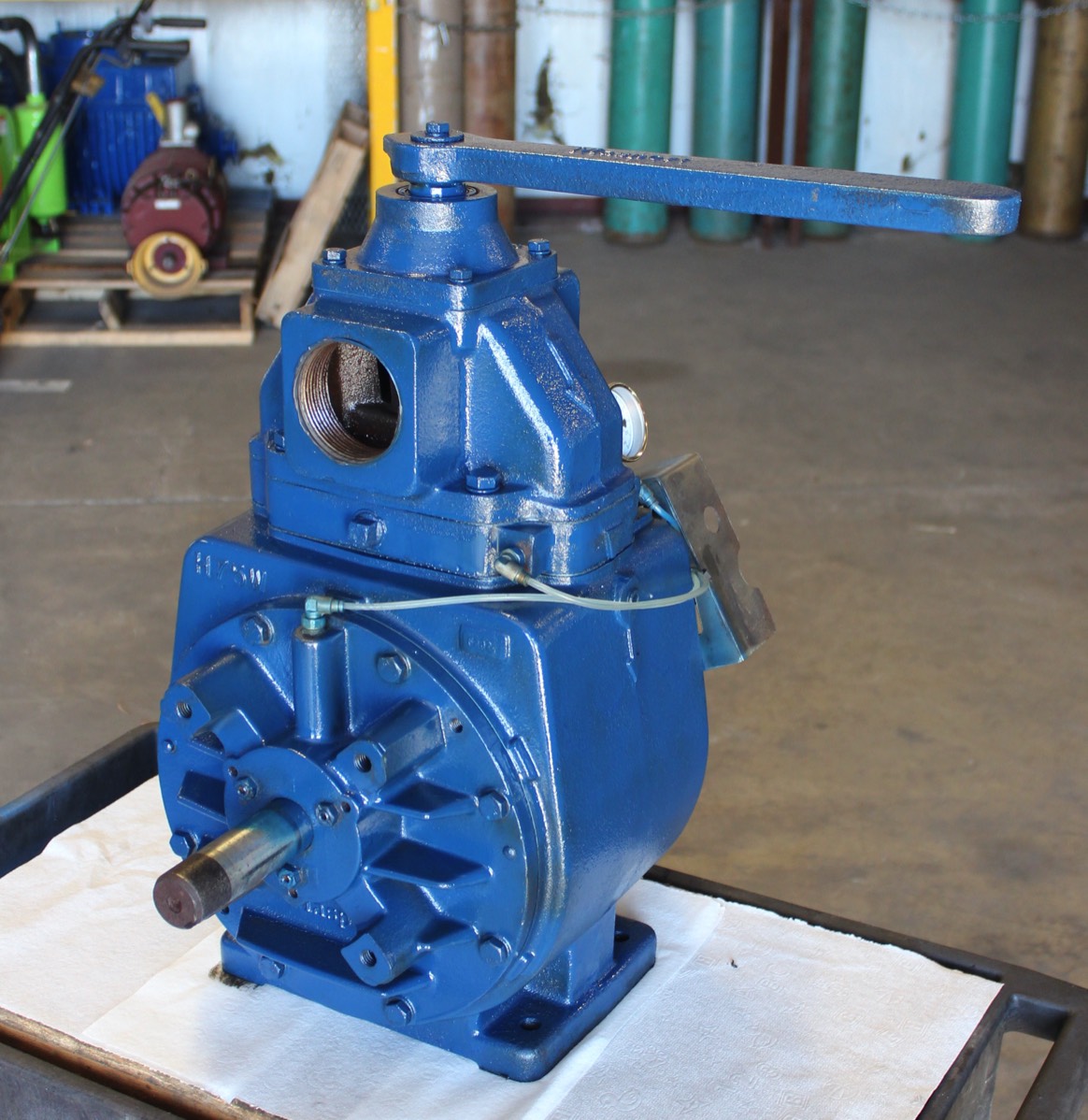

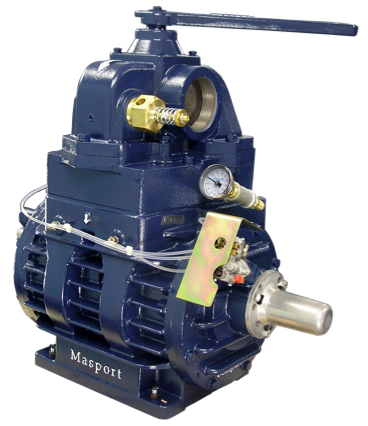

HXL 400W
This pumps have been refurbished by LMT.
Pump features
Pump features
- 400 CFM free air
- 25" Hg maximum continuous vacuum
- 30 PSI maximum pressure
- Liquid cooling for reliable operation under extreme hot or cold weather conditions
- Solid 6 vane rotor design for higher airflow efficiency and dead head vacuum with less vane and cylinder wear, noise, and vibration
- Thermostat kit included
- Vacuum relief valve included
- Double end shaft for clockwise or counter-clockwise rotation
- Automatic oiling
- Integral changeover valve
HXL 75
These pumps have been refurbished by LMT.
This HXL-Series pump features
▪ 240 CFM free air
▪ 25" Hg maximum continuous vacuum
▪ Liquid cooling for reliable operation under extreme hot or cold weather conditions
▪ Double end shaft for clockwise or counter-clockwise rotation
▪ Automatic oiling
▪ Integrated changeover valve
This HXL-Series pump features
▪ 240 CFM free air
▪ 25" Hg maximum continuous vacuum
▪ Liquid cooling for reliable operation under extreme hot or cold weather conditions
▪ Double end shaft for clockwise or counter-clockwise rotation
▪ Automatic oiling
▪ Integrated changeover valve
LMT sells and services most major brands of vacuum pumps. Visit our Vacuum Pumps page for information on NEW pumps.
